Electrical parameters
Frequency range(MHz)	GPS L1/L2/L5 GLONASS G1/G2/G3 BDS B1/B2/B3 GALILEO E1/E5a/E5b/E6 L-Band BT/WIFI
Maximum gain(dBi)	GNSS: 5.5 BT/WIFI: 1
Antenna axis ratio(dB)	≤3.0
Phase center error(mm)	±2
Polarization method	Right-hand circular polarization
Port impedance(Ω)	50
LNA gain(dB)	40±2
In-band flatness(dB)	±2
Noise figure(dB)	≤2.0
Output VSWR	≤2.0
Operating voltage(V)	3.3~15 VDC
Operating current(mA)	≤45
Connector	GNSS: MMCX-JW BT/WIFI: IPEX
Cable length(mm)	GNSS: 45
Antenna weight(g)	≤75
Antenna size(mm)	L111W111H16
Operating temperature(℃)	-40～+85
Storage temperature(℃)	-55～+85
Storage humidity	95% non condensing

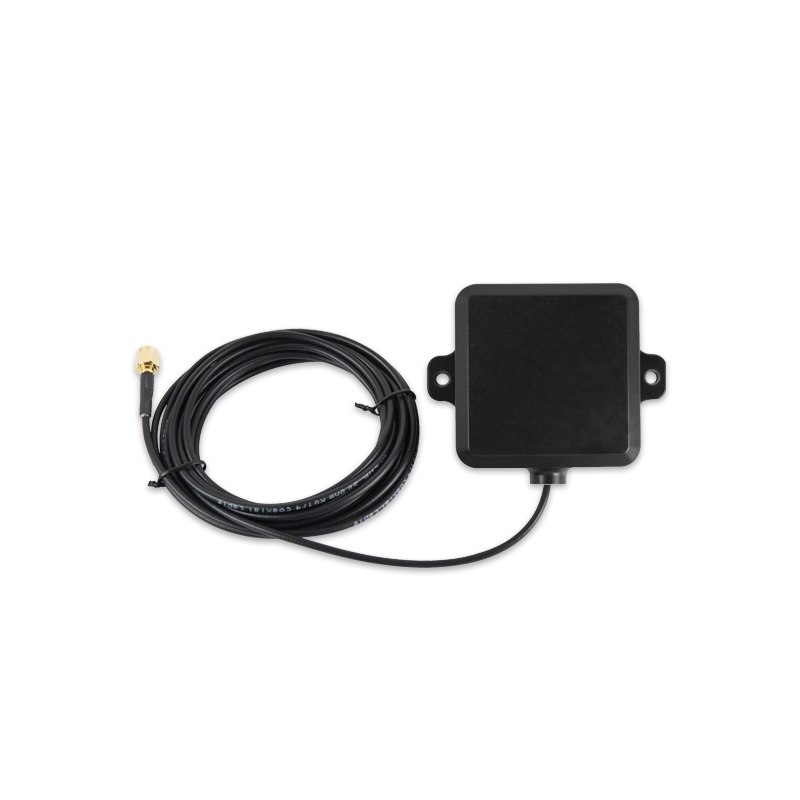

RTK GNSS Antenna YN-111
